Testing

Requirements

Example banking app

An example banking app is available in the Gini Bank SDK repository called example-app.

You can use the same Gini Health API client credentials in the example banking app as in your app, if not otherwise specified.

Development Gini Health API client credentials

In order to test using the Gini Bank SDK’s example banking app, you will need to use development client credentials in your app for the Gini Health SDK. This will make sure the Gini Health SDK receives test payment providers that work with the Gini Bank SDK’s example banking app.

End to end testing

Example banking app

After you’ve set the client credentials in the Gini Bank SDK example app you can install it on your device by using the devPaymentProvider1Debug build flavor. This will allow the Gini Health SDK to detect it as the banking app for the Gini-Test-Payment-Provider.

Note

You can also install the Gini Bank SDK example app’s devPaymentProvider2Debug and devPaymentProvider3Debug build variants to test with two additional example banking apps named GiniBank and Bank.

Payment Fragment

By following the flow guide you should be showing the PaymentFragment in your hierarchy.

Depending on how the fragment is instantiated, with document id or with payment details, the first shown screen will differ.

If the user is a new user (has not finalised any payment flow within the app) the PaymentComponentBottomSheet will be displayed, allowing the user to select a payment provider with which to continue.

If the user is a returning one and the PaymentFragment was instantiated with a document id, the ReviewFragment will be shown. Otherwise, if payment details were used to start the flow, the ReviewBottomSheet will be displayed.

Payment component bottom sheet

The PaymentComponentBottomSheet allows the user to select a payment provider for the payment flow and also provides an entry point to read more information about the payment feature and FAQs.

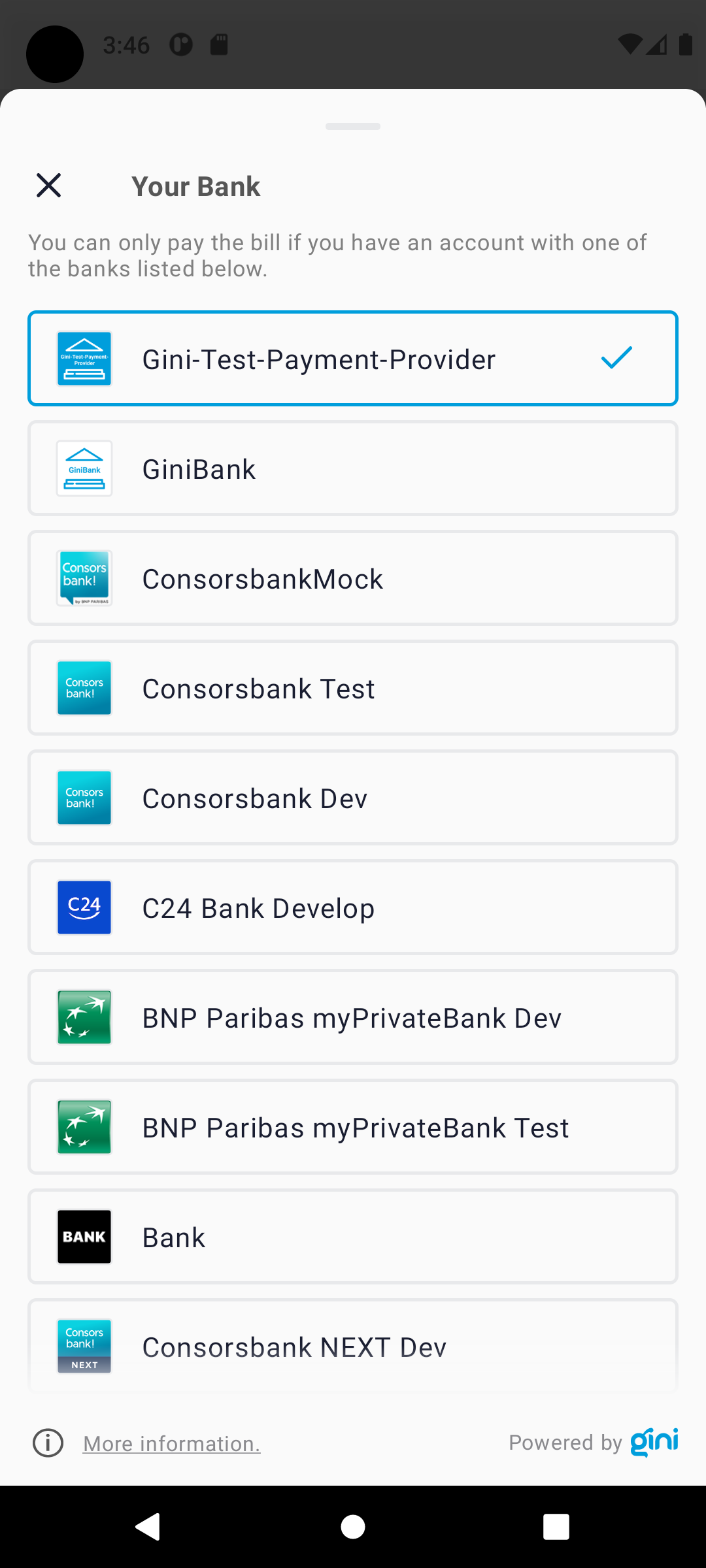

Bank picker

By clicking the picker in the PaymentComponentBottomSheet or the payment provider icon in the ReviewFragment or the ReviewBottomSheet you should see the BankSelectionBottomSheet with the list of available banking apps (including Gini-Test-Payment-Provider and other testing and production apps). If a bank picker was previously selected, it should be highlighted in the list.

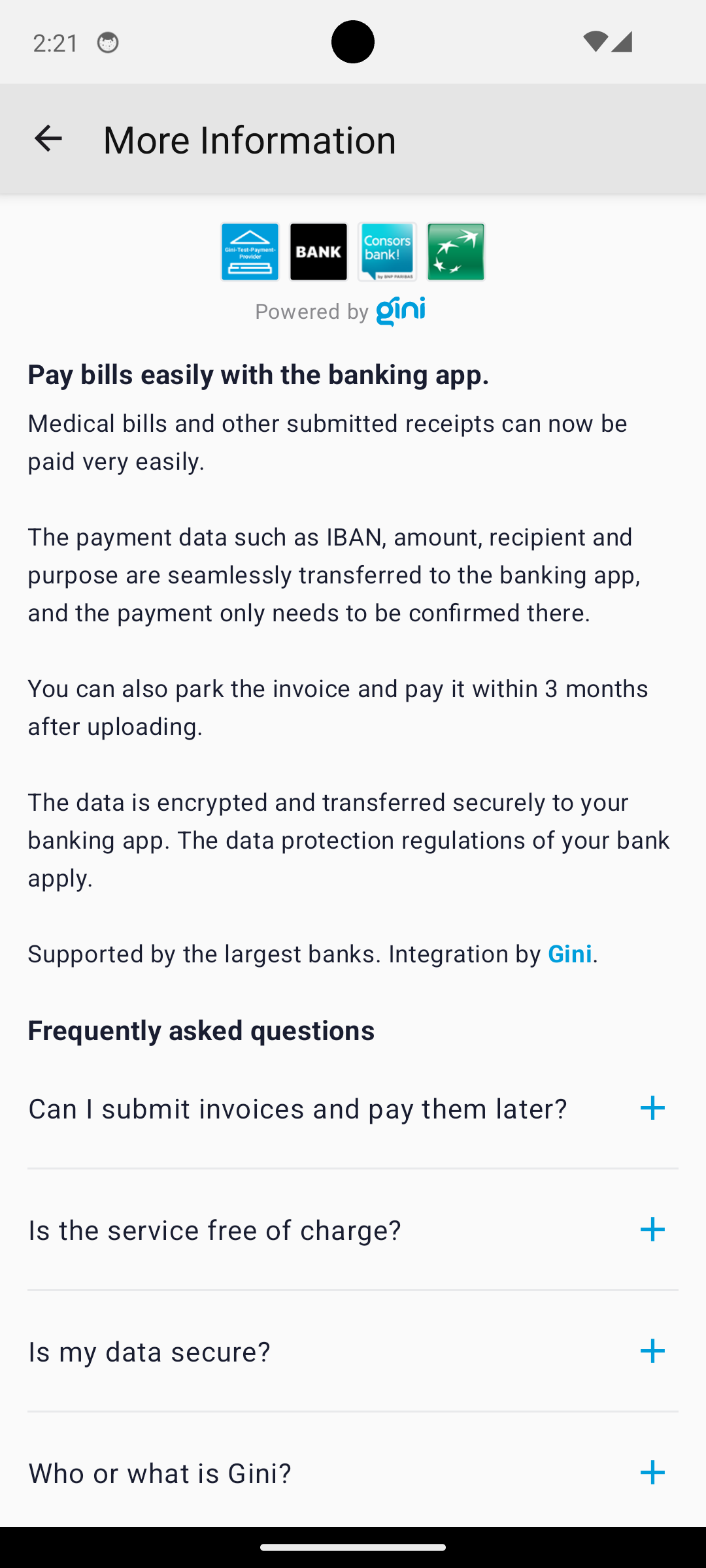

More information and FAQ

By clicking either the more information or the info icon on the PaymentComponentView you should see the MoreInformationFragment with information about the payment feature and an FAQ section.

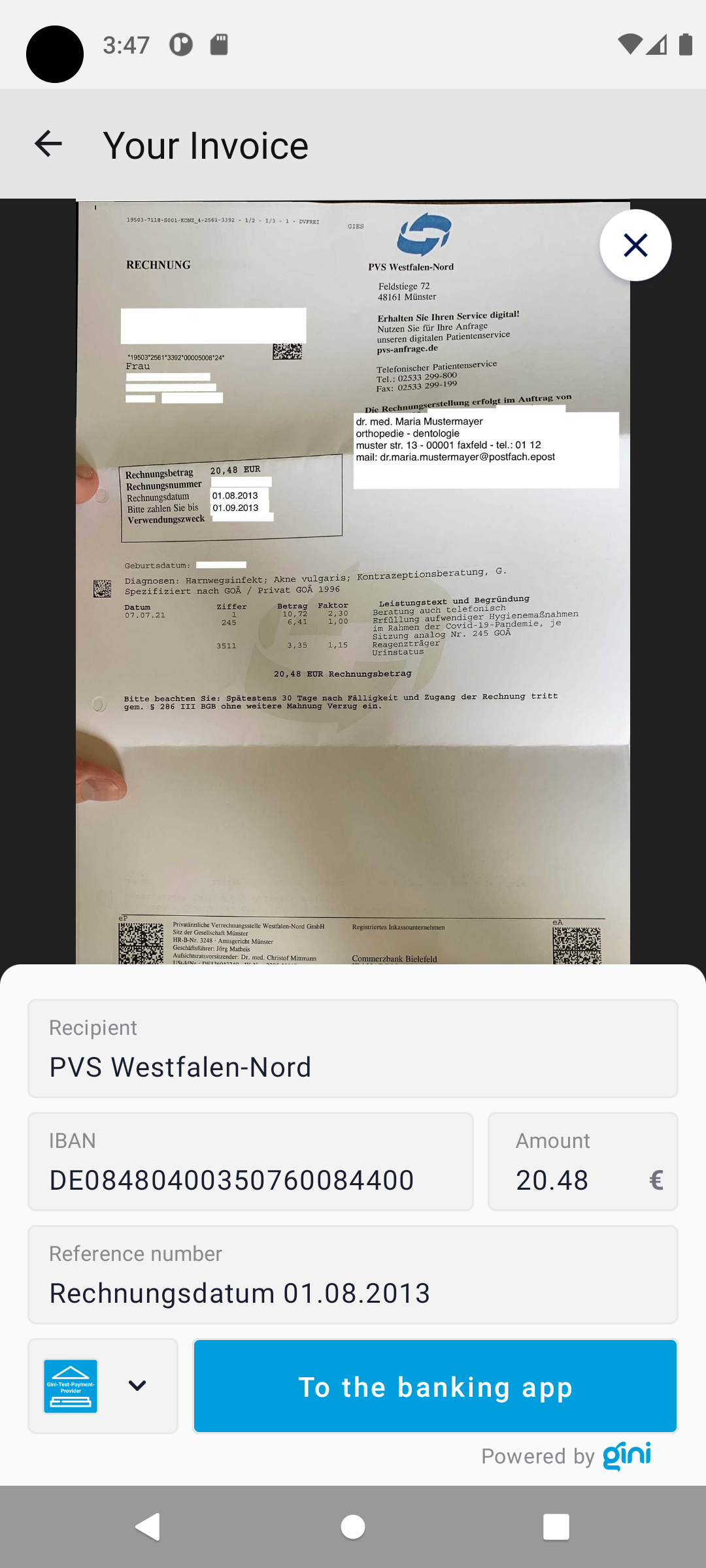

Payment review

By clicking the “Pay the invoice” button on the PaymentComponentBottomSheet you should see either the ReviewFragment or the ReviewBottomSheet, depending on how the flow was started: if a document id was used, the ReviewFragment will be shown, otherwise the ReviewBottomSheet will be displayed.

The ReviewFragment shows the invoice’s pages and the payment information. It also allows editing the payment information. The “To the banking app” button should have the colors of the banking app, which was selected in the PaymentComponentBottomSheet. There is also a picker with the icon of the banking app, which will display the BankSelectionBottomSheet when tapped.

The ReviewBottomSheet is very similar to the ReviewFragment, but there are two differences: there are no pages shown, and only the Amount field of the payment details is editable.

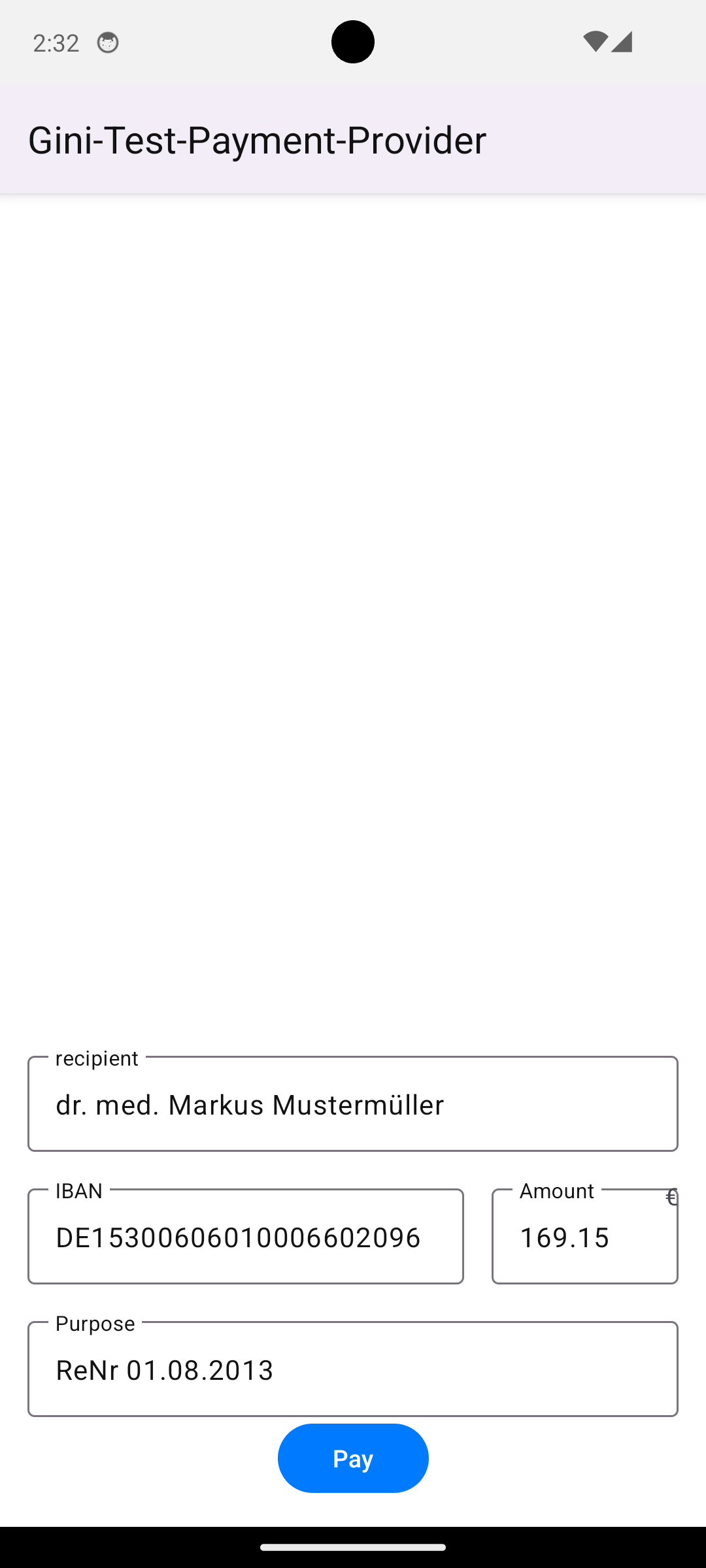

Execute payment

When clicking the “To the banking app” button on the ReviewFragment or the ReviewBottomSheet you should be redirected to the example banking app where the payment information will be fetched from Gini (including any changes you made on the ReviewFragment or the ReviewBottomSheet). Press the “Pay” button to execute a test payment which will mark the payment as paid in the Gini Health API.

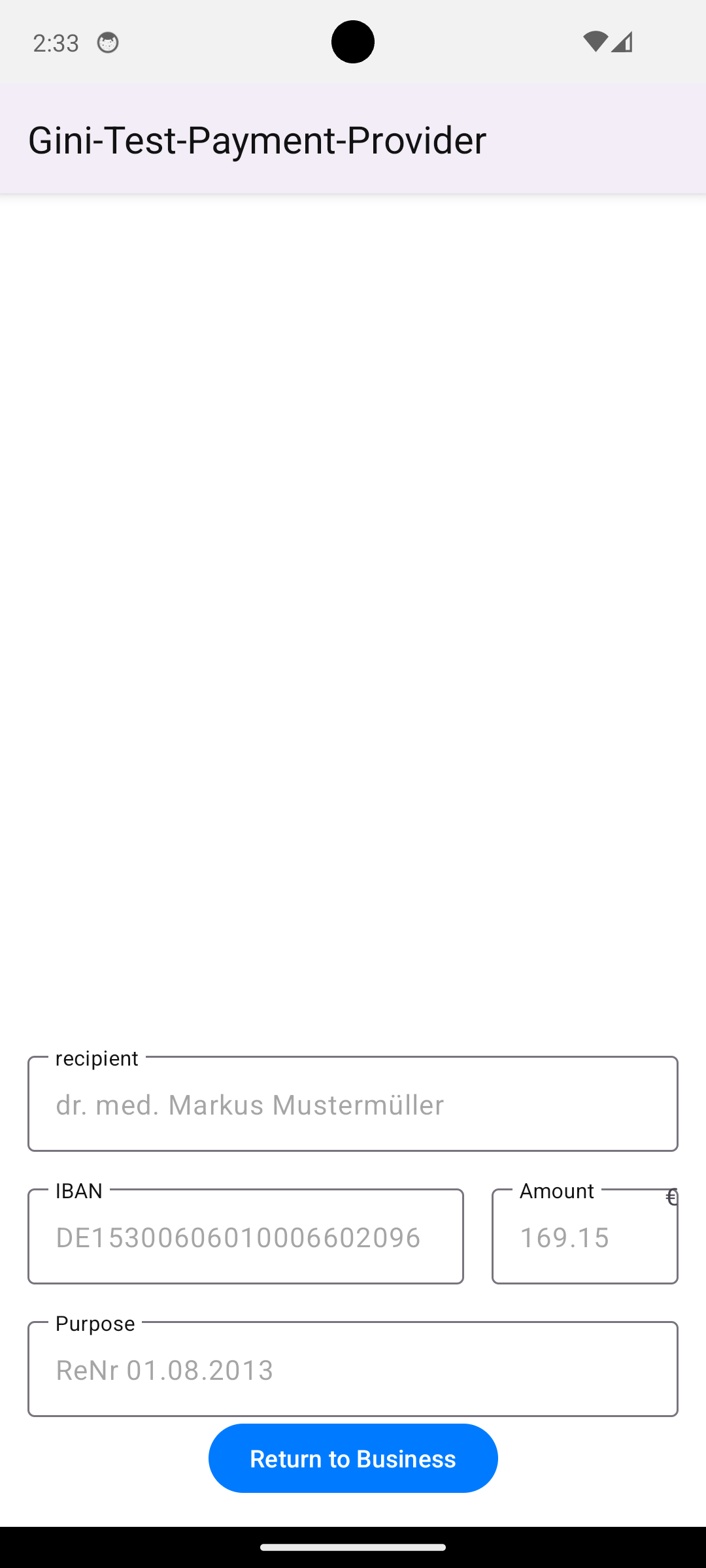

Return to your app

After the test payment has been executed, the example banking app should show a “Return to Business” button which should take you back to your app.

With these steps completed you have verified that your app, the Gini Health API, the Gini Health SDK and the Gini Bank SDK work together correctly.

Testing in production

The steps are almost the same with the only difference, that instead of the development client credentials you will need to use production credentials in your app. This will make sure the Gini Health SDK receives only real payment providers which open real banking apps.

You will also need to install a banking app which uses the Gini Bank SDK. You should be able to install these from the list shown by clicking the bank picker button in a PaymentComponentBottomSheet.
